작성일 : 16-03-28 15:07
[Peel Tester] ZPE-1100W High Speed Release Test System

 글쓴이 : 코린스테크
조회 : 740

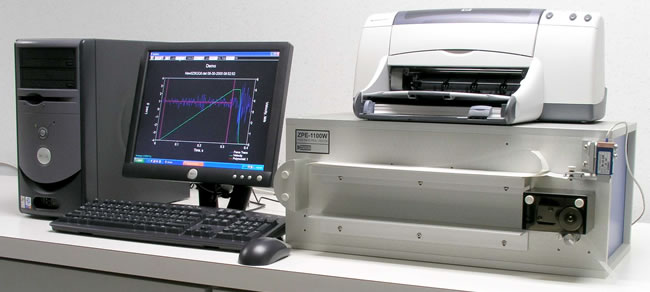

ZPE-1100W High Speed Release Test System


ZPE-1100W High Speed Release Test System

When PSAs were simple rubber-based systems, extrapolation of 100 ft/min test data might predict behavior at 1000 ft/min process and conversion speeds. Today’s highly complex polymer systems, however, no longer produce peel and release forces that follow speeds linearly. In fact they can become inverse and convoluted. ZPE-1100W instruments are employed world-wide to characterize release systems throughout the range of real-world process speeds.

Speed range for the ZPE is from 94 to 12,000 in/min. (.04 to 5 Meters per second.) Uses a precision servo nip roll drive that can be programmed to run at any constant speed, or to ramp speeds linearly from 0 to 1, 0 to 2 or 0 to 5 Meters per second. A single test then, can cover a spectrum of speeds reducing the number of tests that have to be run.

Some of ZPE’s features are:
• Full scale ranges of 50, 500 and 5000 gmf.
• Includes up-to-date PC computer, monitor and printer.
• Windows based operating program
• Graphed data can be edited to avoid start and stop anomalies.
• Test data can be fit to a polynomial up to 20th order.
• Sample rides on airshelf to eliminate friction forces.
• Strips liner from label or label from liner, without using overlay.
• Determines rms values of force as a measure of chatter or zippering.
• Files may be output and stored in several formats, including direct entry into Excel.
